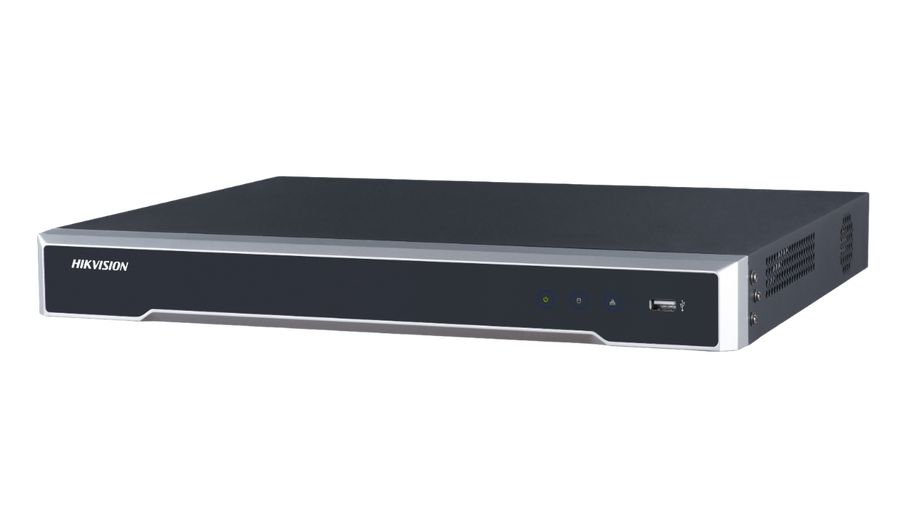

8 Kanal H.265+ 2xSata 8MP 4K NVR DS-7608NI-K2
8 Kanal H.265+ 2xSata 8MP 4K NVR
DS-7608NI-K2
Video/ Audio İnput IP video input 8 Kanal
Incoming bandwidth 80 Mbps
Outgoing bandwidth 160 Mbps
Video/Audio Output HDMI output resolution 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
VGA output resolution 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
Audio output 1 Kanal, RCA (Linear, 1 KΩ)
Decoding Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Recording resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8 Kanal
Capability 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network Management Network Protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,iSCSI, UPnP™, HTTPS
Hard Disk SATA 2 SATA interfaces
Capacity Up to 6 TB capacity for each HDD
Up to 6 TB capacity for each HDD
External İnterface Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
General Power supply 12 VDC
Power ≤ 40 W
Consumption (without hard disk) ≤15 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10 to 90 %
Dimensions (W × D × H) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight (without hard disk) ≤ 1 kg (2.2 lb)
DS-7608NI-K2
Video/ Audio İnput IP video input 8 Kanal
Incoming bandwidth 80 Mbps
Outgoing bandwidth 160 Mbps
Video/Audio Output HDMI output resolution 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
VGA output resolution 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
Audio output 1 Kanal, RCA (Linear, 1 KΩ)
Decoding Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Recording resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8 Kanal
Capability 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network Management Network Protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,iSCSI, UPnP™, HTTPS
Hard Disk SATA 2 SATA interfaces
Capacity Up to 6 TB capacity for each HDD
Up to 6 TB capacity for each HDD
External İnterface Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
General Power supply 12 VDC
Power ≤ 40 W
Consumption (without hard disk) ≤15 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10 to 90 %
Dimensions (W × D × H) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight (without hard disk) ≤ 1 kg (2.2 lb)
